Ordering Information

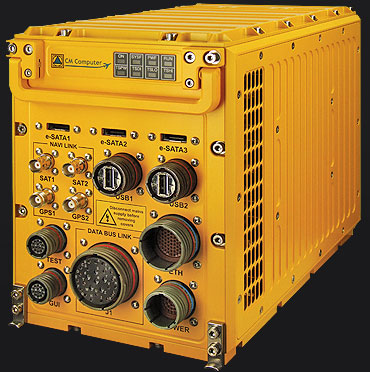

Generic Part Number:
CM-ATR-3U /CT /B /I /W /FP /TC /BC /CS /F /C
/CT Enclosure Cooling Technique
  • CM-ATR-3U/FAC: Flowthrough Air Cooled (open).
  • CM-ATR-3U/S: Standard Sealed.
  • CM-ATR-3U/SEF-18HP: Sealed Extended Fins + 18 Heat Pipes.
  • CM-ATR-3U/HES: Sealed with 4 Heat Exchangers.
  • CM-ATR-3U/HES-FBL(3-5-7-9): Sealed, conventional front-to-back format with 4 Heat Exchangers.
/B Backplane Type
  • VME64x: Military VME64x Backplane (5 Slot 1" Pitch 3U).
  • cPCI: Military CompactPCI Backplane (5 Slot 1" Pitch 3U).
  • cPCI-S: Military CompactPCI Serial Backplane (3-5-7-9 Slot 1" Pitch 3U).
  • VPX: VITA 46 Military VPX Backplane (3-5-7-9 Slot 1" Pitch 3U).
  • VPX-6: VITA 46 Military VPX Backplane (6 Slot 0.85" Pitch 3U).
/I PSU Input Power Voltage
  • 28VDC: 28 VDC Input.
  • 48VDC: 48 VDC Input.
  • 72DC: 72 VDC Input.
  • 270VDC: 270 VDC Input.
  • 90-264VAC: Autorange 90-264 VAC @ 47-880Hz Input.
  • 200VAC-3Ph: 200 VAC 3 Phase @ 47-880Hz Input.
/W Power Supply Unit Watt
  • A-475W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @8A).
  • A-575W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @12A).
  • A-675W: 28 VDC (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @8A)*.
  • A-775W: All PSUs (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @12A)*.
  • B-450W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @8A).
  • B-550W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @12A).
  • B-564W: 28 VDC (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @8A)*.
  • B-664W: All PSUs (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @12A)*.
  • C-475W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A).
  • C-575W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A).
  • C-775W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @8A)*.
  • C-825W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @12A)*.
  • D-550W: 28 VDC (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @8A)*.
  • D-650W: All PSUs (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @12A)*.
  • E-550W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @16A, -12 VDC @8A)*.
  • E-650W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @21A, -12 VDC @12A)*.
  • F-575W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A)*.
  • F-675W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A)*.
All PSUs = All PSUs except 28 VDC input
28 VDC = 28 VDC input only
* PSU not available for CM-ATR-3U/FAC & CM-ATR-3U/HES-FBL chassis models.
/FP Front Panel Layout
  • CMP: Standard CM front panel fitted with MIL-C-38999 connectors.
  • UDP: User defined front panel layout (requires customer drawing).
/TC Chassis Top Cover
  • STC: Standard Top Cover. Wiring clearance 13mm.
  • FTC: Finned Top Cover. Wiring clearance 13mm.*
  • HTC: High-profile Top Cover. Wiring clearance 35mm.
  • HETC: Heat Exchanger Top Cover. Wiring clearance 13mm.**
* Fitted as standard on SEF-18HP chassis model.
** Fitted as standard on HES & HES-FBL chassis model.
/BC Chassis Bottom Cover
  • SBC: Standard Bottom Cover. Wiring clearance below backplane 24mm.
  • HBC: High-profile Bottom Cover. Wiring clearance below backplane 49mm.
/CS Chassis Card-cage Slot
  • MCS: Universal Card-cage Slots (mixed Conduction-cooled & Air-cooled Boards)*.
  • CCS: Conduction cooled Card-cage Slots (Conduction-cooled Boards Only).
* MCS not available for CM-ATR-3U/HES-FBL models.
/F Rear-mounted Fan Assembly
  • STDF-DC: 2x42 CFM DC Rugged Fans (HES & HES-FBL) or 1x27 CFM DC Rugged Fan (FAC).
  • STDF-AC: 2x47 CFM 115 VAC @ 400Hz Rugged Fans (HES & HES-FBL) or 1x27 CFM DC Rugged Fan (FAC).
  • F115-400: Optional 2x65 CFM Rotron PX2 Military Fan for 115 VAC @ 400Hz (HES & HES-FBL), 1x65 CFM Rotron PX2 Military Fan (FAC).
  • F200-400: Optional 2x120 CFM Rotron PX2 Military Fan for 200 VAC 3-phase @ 400Hz (HES & HES-FBL), 1x120 CFM Rotron PX2 Military Fan (FAC).
  • No rear fan required for /S & /SEF-HP chassis model.
  • Rugged fans with aluminum housing. Operating range: -10ºC to +70ºC.
  • Full military Rotron PX2 AC fans. Operating range: -54ºC to +125ºC.
/C Chassis Color
  • B: Black, G: Navy Grey, E: Army Dark Earth, W: White, R: Red, PT: Platinum, YW: Yellow, GN: Green, BLU: Dark Blue, CR: Chromate MIL-C-5541 or O: Other (user defined).
Read More

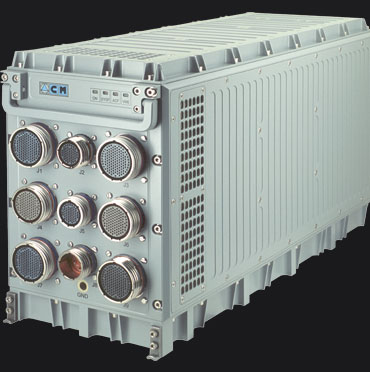

Generic Part Number:
CM-ATR-S5 /CT /B /I /W /3.3 /D1 /D2 /R /S /FP /TC /BC /CS /F /G /C
/S5 Enclosure Size
  • CM-ATR-25: 5 Slot 6U Enclosure (0.8" pitch - ½ ATR type).
  • CM-ATR-125: 5 Slot 6U Enclosure (1" pitch - ½ ATR type).
  • CM-ATR-35: 7 Slot 6U Enclosure (0.8" pitch - ¾ ATR type).
  • CM-ATR-135: 7 Slot 6U Enclosure (1" pitch - ¾ ATR type).
  • CM-ATR-45: 12 Slot 6U Enclosure (0.8" pitch - 1 ATR type).
/CT Enclosure Cooling Technique
  • S: Standard Sealed (0.8" pitch).
  • SEF: Sealed with Extended Fins (0.8" pitch).
  • SEF-HP: Sealed Extended Fins + 18/20 Heat Pipes (0.8" pitch).
  • FAC: Flowthrough Air Cooled (open, non-sealed) (0.8" pitch).
  • HES: Sealed with 4 Heat Exchangers (0.8" & 1" pitch versions).
  • SIXHEX: Sealed with 6 Heat Exchangers (0.8" & 1" pitch versions).
  • SIXHEX-HP: Sealed with 6 Heat Exchangers + 16/20 Heat Pipes (0.8" pitch with 16HP & 1" pitch with 20HP versions).
/B Backplane Type
  • VME64x: Military VME64x Backplane.
  • cPCI: Military Compact PCI Backplane.
  • VPX: VITA 46 Military VPX Backplane.
  • VPX/VME64x: Hybrid VME64x split with VPX Military Backplane.
  • VME64x/cPCI: Hybrid VME64x split with cPCI Military Backplane.
/I PSU Input Power Voltage
  • 28VDC: 28 VDC Input.
  • 48VDC: 48 VDC Input.
  • 72VDC: 72 VDC Input.
  • 270VDC: 270 VDC Input.
  • 90-264VAC: Autorange 90-264 VAC @ 47-880 Hz Input.
  • 200VAC-3Ph: 200 VAC 3 Phase @ 47-880 Hz Input.
/W Power Supply Unit Watt
CM-ATR-25 - 5 Slot
Models: /S /SEF /SEF-HP /HES(0.8") /FAC
  • 300W: 28 VDC (+5 VDC @20A, +3.3 VDC @5A, ±12 VDC @8A).
  • 400W: All PSUs (+5 VDC @20A, +3.3 VDC @5A, ±12 VDC @12A).
Models: /S /SEF /SEF-HP /HES /SIXHEX /SIXHEX-HP
  • A-475W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @8A).
  • A-575W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @12A).
  • A-675W: 28 VDC (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @8A)*.
  • A-775W: All PSUs (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @12A)*.
  • B-450W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @8A).
  • B-550W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @12A).
  • B-564W: 28 VDC (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @8A)*.
  • B-664W: All PSUs (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @12A)*.
  • C-475W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A).
  • C-575W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A).
  • C-775W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @8A)*.
  • C-825W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @12A)*.
  • D-550W: 28 VDC (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @8A)*.
  • D-650W: All PSUs (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @12A)*.
  • E-550W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @16A, -12 VDC @8A)*.
  • E-650W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @21A, -12 VDC @12A)*.
  • F-575W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A)*.
  • F-675W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A)*.
* PSU only available for CM-ATR-125 /HES /SIXHEX /SIXHEX-HP 1" pitch models.
CM-ATR-35 - 7 Slot
Models: /S /SEF /SEF-HP /HES(0.8") /FAC
  • 400W: 28 VDC (+5 VDC @40A, +3.3 VDC @5A, ±12 VDC @8A).
  • 500W: All PSUs (+5 VDC @40A, +3.3 VDC @5A, ±12 VDC @12A).
Models: /S /SEF /SEF-HP /HES or /SIXHEX or /SIXHEX-HP
  • A-475W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @8A).
  • A-575W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, ±12 VDC @12A).
  • A-675W: 28 VDC (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @8A)*.
  • A-775W: All PSUs (+5 VDC @80A, +3.3 VDC @22A, ±12 VDC @12A)*.
  • B-450W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @8A).
  • B-550W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, ±12 VDC @12A).
  • B-564W: 28 VDC (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @8A)*.
  • B-664W: All PSUs (+5 VDC @20A, +3.3 VDC @80A, ±12 VDC @12A)*.
  • C-475W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A).
  • C-575W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A).
  • C-775W: 28 VDC (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @8A)*.
  • C-825W: All PSUs (+5 VDC @20A, +3.3 VDC @22A, +12 VDC @41A, -12 VDC @12A)*.
  • D-550W: 28 VDC (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @8A)*.
  • D-650W: All PSUs (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @12A)*.
  • E-550W: 28 VDC (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @16A, -12 VDC @8A)*.
  • E-650W: All PSUs (+5 VDC @20A, +3.3 VDC @45A, +12 VDC @21A, -12 VDC @12A)*.
  • F-575W: 28 VDC (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @16A, -12 VDC @8A)*.
  • F-675W: All PSUs (+5 VDC @40A, +3.3 VDC @22A, +12 VDC @21A, -12 VDC @12A)*.
Dual-redundant PSUs /HES /SIXHEX /SIXHEX-HP models
  • R2x500W: (+5 VDC @25A, +3.3 VDC @23A, ±12 VDC @12A).
CM-ATR-45 - 12 Slot
Models: /S /SEF /SEF-HP or /HES(0.8") or /FAC
  • 950W: 28 VDC (+5 VDC @80A, +3.3 VDC @45A, ±12 VDC @16A).
  • 1050W: All PSUs (+5 VDC @80A, +3.3 VDC @45A, ±12 VDC @21A).
Models: /HES or /SIXHEX or /SIXHEX-HP
  • A-950W: 28 VDC (+5 VDC @80A, +3.3 VDC @45A, ±12 VDC @16A).
  • A-1050W: All PSUs (+5 VDC @80A, +3.3 VDC @45A, ±12 VDC @21A).
  • B-950W: 28 VDC (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @16A).
  • B-1100W: All PSUs (+5 VDC @40A, +3.3 VDC @45A, ±12 VDC @21A).
  • B-1065W: 28 VDC (+5 VDC @80A, +3.3 VDC @80A, ±12 VDC @16A).
  • B-1165W: All PSUs (+5 VDC @80A, +3.3 VDC @80A, ±12 VDC @21A).
  • C-864W: 28 VDC (+5 VDC @40A, +3.3 VDC @80A, ±12 VDC @16A).
  • C-964W: All PSUs (+5 VDC @40A, +3.3 VDC @80A, ±12 VDC @20A).
  • C-1225W: 28 VDC (+5 VDC @80A, +3.3 VDC @160A, ±12 VDC @16A).
  • C-1425W: All PSUs (+5 VDC @80A, +3.3 VDC @160A, ±12 VDC @21A).
  • D-1350W: 28 VDC (+5 VDC @160A, +3.3 VDC @80A, ±12 VDC @16A).
  • D-1550W: All PSUs (+5 VDC @160A, +3.3 VDC @80A, ±12 VDC @21A).
Dual-redundant PSUs /HES /SIXHEX /SIXHEX-HP models
  • R2x725W: (+5 VDC @20A, +3.3 VDC @23A, ±12 VDC @12A, ±28 VDC @9A).
  • R2x675W: (+5 VDC @60A, +3.3 VDC @23A, ±12 VDC @12A).
  • R2x625W: (+5 VDC @20A, +3.3 VDC @68A, ±12 VDC @12A).
  • R2x710W: (+5 VDC @20A, +3.3 VDC @23A, +12 VDC @32A, -12 VDC @12A).
All PSUs = All PSUs except 28 VDC input
28 VDC = 28 VDC input only
/3.3 3.3VDC (CM-ATR-25 & CM-ATR-35)
  • 3.3-75W: 3.3VDC @ 22A (in Lieu of default 3.3 VDC @ 5A).
  • Optional DC/DC AUX0 converter on Backplane fitted for 3.3VDC. Option suited for 1st generation PSU models 300W/400W/500W. Note: If /3.3-75W is not selected, DC/DC power socket AUX0 remains free to the user.
/D1 DC/DC AUX1 (CM-ATR-35 & CM-ATR-45)
  • D1: 100W Optional DC/DC Converter on Backplane. User-defined output 1.
/D2 DC/DC AUX2 (CM-ATR-45)
  • D2: 100W Optional DC/DC Converter on Backplane. User-defined output 2.
D1 & D2 Backplane auxiliary DC/DC output options: +2VDC 50W, -2VDC 50W, +3.3VDC 75W, -3.3VDC 75W, +5VDC 100W, -5VDC 100W, +12VDC 100W, -12VDC 100W, +15VDC 100W, -15VDC 100W, +28VDC 100W, -28VDC 100W, +48VDC 100W, -48VDC 100W.
Ordering Examples: 48-100W >> 48VDC @ 2A or 2-50W >> 2VDC @ 25A.
/R Redundant PSU (Plug-in)(CM-ATR-35 & CM-ATR-45)
  • RA-475W: 28 VDC +5VDC @40A, +3.3VDC @22A, ±12VDC @8A.
  • RB-575W: All PSUs +5VDC @40A, +3.3VDC @22A, ±12VDC @12A.
/S Temperature Supervisory Unit
  • TSU: Optionally installed in backplane (for /S /SEF /FAC models).
Note: TSU is fitted as standard in SEF-HP, HES, SIXHEX & SIXHEX-HP models.
/FP Front Panel Layout
  • CMP: Standard CM front panel fitted with MIL-C-38999 connectors.
  • UDP: User defined front panel layout (requires customer drawing).
/TC Chassis Top Cover
  • STC: Standard Top Cover. Wiring clearance 20mm.
  • FTC: Finned Top Cover. Wiring clearance 20mm.*
  • HTC: High-profile Top Cover. Wiring clearance 35mm.
  • HETC: Heat Exchanger Top Cover. Wiring clearance 20mm.**
  • EHETC: Extended Heat Exchanger Top Cover. Wiring clearance 35mm.
* Fitted as standard on SEF & SEF-HP chassis modes.
** Fitted as standard on HES, SIXHEX & SIXHEX-HP chassis models.
/BC Chassis Bottom Cover
  • SBC: Standard Bottom Cover. Wiring clearance below backplane 25mm.
  • HBC: High Profile Bottom Cover (standard on /HES(1") /SIXHEX /SIXHEX-HP models). Wiring clearance below backplane 50mm.
/CS Chassis Card-cage Slot
  • MCS: Universal Card-cage Slots (mixed Conduction-cooled & Air-cooled Boards).
  • CCS: Conduction cooled Card-cage Slots (Conduction-cooled Boards Only).
/F Rear-mounted Fan Assembly
Fans for CM-ATR-25 & CM-ATR-35
Models: /FAC
  • F115-400: 1x65 CFM 115VAC @ 400Hz Rotron PX2 Military Fan.
  • F200-400: 1x120 CFM 200VAC @ 400Hz 3-Phase Rotron PX2 Military Fan.
  • F28: 1x65 CFM 28VDC Rotron PX2 Military Fan (through AC/DC converter).
Models: /HES(0.8")
  • F115-400: 2x65 CFM 115VAC @ 400Hz Rotron PX2 Military Fans.
  • F200-400: 2x120 CFM 200VAC @ 400Hz 3-Phase Rotron PX2 Military Fans.
  • F28: 2x65 CFM 28VDC Rotron PX2 Military Fans (through AC/DC converter).
Models: /HES (1") /SIXHEX /SIXHEX-HP
  • F115-400: 2x100 CFM 115VAC @ 400Hz Rotron PX3 Military Fans.
  • F200-400: 2x140 CFM 200VAC @ 400Hz 3-Phase Rotron PX3 Military Fans.
  • F28: 2x100 CFM 28VDC Rotron PX3 Military Fans (through AC/DC converter).
  • F115-60: 2x100 CFM 115VAC @ 60Hz Rugged Fans.
  • F220-50: 2x100 CFM 220VAC @ 50Hz Rugged Fans.
Fans for CM-ATR-45 - 12 Slot
Models: /FAC
  • F115-400: 2x100 CFM 115VAC @ 400Hz Rotron PX3 Military Fans.
  • F200-400: 2x140 CFM 200VAC @ 400Hz 3-Phase Rotron PX3 Military Fans.
  • F28: 2x100 CFM 28VDC Rotron PX3 Military Fans (through AC/DC converter).
Models: /HES(0.8")
  • F115-400: 4x65 CFM 115VAC @ 400Hz Rotron PX2 Military Fans.
  • F115-400: 2x100 CFM 115VAC @ 400Hz Rotron PX3 Military Fans.
  • F200-400: 4x120 CFM 200VAC @ 400Hz 3-Phase Rotron PX2 Military Fans.
  • F28: 4x65 CFM 28VDC Rotron PX2 Military Fans (through AC/DC converter).
Models: /HES (1") /SIXHEX /SIXHEX-HP
  • F115-400: 4x100 CFM 115VAC @ 400Hz Rotron PX3 Military Fans.
  • F115-400: 2x100 CFM 115VAC @ 400Hz Rotron PX3 Military Fans.
  • F200-400: 4x140 CFM 200VAC @ 400Hz 3-Phase Rotron PX3 Military Fans.
  • F28: 4x100 CFM 28VDC Rotron PX3 Military Fans (through AC/DC converter).
  • F115-60: 4x100 CFM 115VAC @ 60Hz Rugged Fans.
  • F220-50: 4x100 CFM 220VAC @ 50Hz Rugged Fans.
No rear fan required for /S /SEF & /SEF-HP models, omit from part number.
Rugged fans are fitted with aluminum housing. Operating range: -10ºC to +70ºC.
Full military Rotron PX2 & PX3 AC fans. Operating range: -54ºC to +125C.
Note: Fan input voltage can be selected independently of main PSU voltage.
Vehicle air-plenum assembly for /HES /SIXHEX /SIXHEX-HP models
  • VAP: Vehicle Air-Plenum according to client specifications (ext. forced air source).
/G Fan Finger Guards
  • STDG: Standard Rotron PX2/PX3 finger guards.
  • EMIG: Optional EMI shielding finger guards fitted with honeycomb filter.
  • GNF: Optional finger guards fitted with low acoustic noise filter (-5dB).
/C Chassis Color
  • B: Black, G: Navy Grey, E: Army Dark Earth, W: White, R: Red, PT: Platinum, YW: Yellow, GN: Green, BLU: Dark Blue, CR: Chromate MIL-C-5541 or O: Other (user defined).
Read More

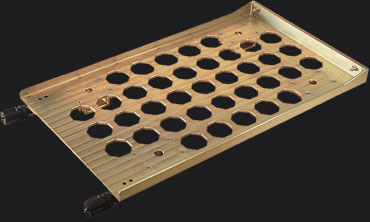

Generic Part Number:
CM-TR-S5 /CT
/S5 Mounting Tray Size
  • 3U: 3U Mounting Tray for CM-ATR-3U, ½ ATR - 5 Slots.
  • 25: 6U Mounting Tray for CM-ATR-25, ½ ATR - 5 Slots.
  • 125: 6U Mounting Tray for CM-ATR-125, ½ ATR - 5 Slots.
  • 35: 6U Mounting Tray for CM-ATR-35, ¾ ATR - 7 Slots.
  • 135: 6U Mounting Tray for CM-ATR-135, ¾ ATR - 5 Slots.
  • 45: 6U Mounting Tray for CM-ATR-45, 1 ATR - 12 Slots.
/CT Enclosure Cooling Technique
3U ATR Chassis
  • S: Standard Sealed.
  • SEF-18HP: Sealed Extended Fins + 18 Heat Pipes.
  • FAC: Flowthrough Air Cooled (open).
  • HES: Sealed with 4 Heat Exchangers.
  • HES-FBL: Sealed with 4 Heat Exchangers front-to-back format.
/CT Enclosure Cooling Technique
6U ATR Chassis
  • S: Standard Sealed.
  • SEF: Sealed with Extended Fins.
  • SEF-HP: Sealed Extended Fins + 18/20 Heat Pipes.
  • FAC: Flowthrough Air Cooled (open, non-sealed).
  • HES: Sealed with 4 Heat Exchangers.
  • SIXHEX: Sealed with 6 Heat Exchangers.
  • SIXHEX-HP: Sealed with 6 Heat Exchangers + 16/20 Heat Pipes
NOTE: CM chassis mounting trays provide support for shock isolators that are capable of attenuating high vibration environments. These are not delivered with mounting trays manufactured by CM Computer. Customers must select their appropriate mount solution according to application requirements.
Generic Part Number:
CM-XX-XX /V /T /M
/XX-XX Module Type
  • AD-45: Analog to Digital.
  • CPU-40/60: Single Board Computer.
  • DA-40: Digital to Analog.
  • DA-50: Digital to Analog.
  • DI-40: Discrete Input.
  • DI-42: Discrete Input.
  • DIO-40: Discrete Input/Output.
  • DO-40: Discrete Output.
  • DS-40: Synchro-Resolver Output.
  • IOC-40: Input/Output.
  • MEM-40: Memory Expansion.
  • SD-40: Synchro-Resolver Input.
  • SDS-40: Synchro-Resolver Input/Output.
  • VID-40: Graphics.
/V Version of Module
  • 1: Version 1 of module.
  • 2: Version 2 of module.
  • ... etc.
  • n: n = Version n of module.
/T Temperature Range
  • C: Commercial (0°C to +60°C). Only available with fiberglass PCB.
  • I: Industrial (-20°C to +70°C). Only available with fibreglass PCB.
  • R+: Military Rugged+ (-40°C to +85°C). Only available with conduction cooled PCB.
  • 883: Full Military 883 (-50°C to +90°C). Only available with conduction cooled PCB.
/M Mechanical Version
  • A: IEC 297 Standard mechanics with front panel. J2 and front panel I/O connectors.
  • B: IEEE P1101.2 Military mechanics with wedge-locks & J2 I/O connector.
Read More

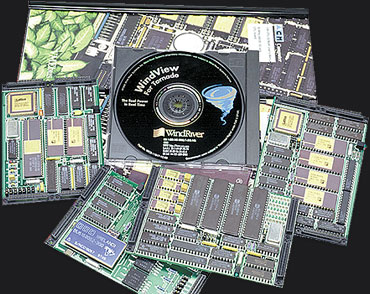

Generic Part Number:
CM-XX-XX-SW /V
/XX-XX Module Type
  • AD-45: Analog to Digital.
  • CPU-40/60: Single Board Computer.
  • DA-40: Digital to Analog.
  • DA-50: Digital to Analog.
  • DI-40: Discrete Input.
  • DI-42: Discrete Input.
/XX-XX Module Type
  • DIO-40: Discrete Input/Output.
  • DO-40: Discrete Output.
  • DS-40: Synchro-Resolver Output.
  • IOC-40: Input/Output.
  • MEM-40: Memory Expansion.
  • SD-40: Synchro-Resolver Input.
  • SDS-40: Synchro-Resolver Input/Output.
  • VID-40: Graphics.
Read More

Short Form Catalog

Short Form Catalog 2010

Part Number Example

CM-ATR-3U/HES/VPX/90-264VAC/C-575W/UDP/STC/SBC/CCS/STDF-AC/YW
  • 1/2 ATR, 5 slot 1" Pitch, 3U Heat Exchanger Sidewall Enclosure.
  • 5 slot, 3U VPX backplane.
  • Auto-range 90-264VAC @ 47-880Hz input power supply.
  • C-575W PSU (+5VDC @ 20A, 3.3VDC @ 22A, +12VDC @ 21A, -12VDC @ 12A).
  • User defined front panel layout.
  • Standard Top Cover. Clearance 13mm.
  • Standard Bottom Cover. Clearance 25mm.
  • Conduction Card-cage Slots (Conduction-cooled Boards Only).
  • 2x47 CFM 115 VAC @ 400 Hz Rugged Fans.
  • Enclosure color is yellow.
CM-ATR-35/HES/VME64x/90-264VAC/A-1050W/15-100W/RB-575W/TSU/CMP/HTC/HBC/F200-400/EMIG/PT
  • 3/4 ATR, 7 slot 0.8" Pitch, 6U Heat Exchanger Sidewalls Enclosure.
  • 7 slot VME64x Backplane for 6U boards fitted with 5 row 160 pin VME64x J0/J1/J2 connectors.
  • Auto-range 90-264VAC @ 47-880Hz input power supply.
  • A-1050W PSU (+5VDC @80A, ±12VDC @21A, +3.3VDC @45A).
  • (+)15VDC @ 6.6A DC/DC AUX1 user output on Backplane.
  • Redundant Plug-in PSU with RB-575W (+5VDC @40A, +3.3VDC @22A,±12VDC @12A).
  • Temperature Supervisory Unit.
  • Standard CM front panel.
  • Extended high profile top cover.
  • Extended high profile bottom cover.
  • 2x Rotron PX2 military Fan for 115VAC @ 400Hz (130 CFM total).
  • EMI shielded finger guards.
  • Enclosure platinum color.
CM-TR-45/HES
  • 6U Mounting Tray for CM-ATR-45, 1 ATR - 12 Slots.
  • Designed for HES (0.8" Pitch) model.
  • Optimized lightweight aircraft aluminium
  • MIL-DTL-5541F Chromate anti-corrosion
  • Quick release hold down device/mechanism
CM-DA-40/1/R+/A
  • Module is CM-DA-40 24 Channel Optoisolated 12 Bit Analog Output Module.
  • Version is /1 with 24 D/A channels, 12 bit resolution, without galvanic isolation.
  • Military Rugged+ temperature range (-40°C to +85°C).
  • IEC 297 Standard mechanics with front panel. J2 and front panel I/O connectors.
CM-DA-40-SW
  • Module is CM-DA-40 (24 Channel Optoisolated 12 Bit Analog Output Module).
  • VxWorks driver
  • Generic ANSI C
CM 3U ATR HES SERIES
CM 6U ATR HES SERIES
CM ATR MOUNTING TRAY
VME MODULE ORDERING
CM BSP SOFTWARE ORDERING
